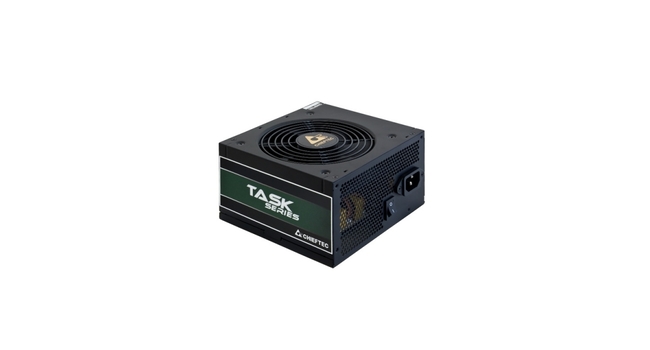

CHIEFTEC Task 600W certified 80Plus


  • 80PLUS® Bronze certified efficiency
  • 650mm long cables for maximum case compatibility
  • All modern protection and safety features included

Tuotekoodi: TPS-600S
Liikkeen varasto:1 kpl
Hinta:
(sis. ALV 25.50%)
56.68 €

The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.

With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger

TECHNICAL DATA Model  TASK 600W

Article no.  TPS-600S
EAN code  0753263076496
Weight (without/with package)  1.67 kg / 2.08 kg
AC Input  110V-240V / 9.0A
Frequency  47 - 63Hz
+5V  17A
+3,3V  19A
+5V & +3,3V combined  110W
+12V1  46A
+12V2  -
+12V1, +12V2 combined  552W
P.F.  >0,9
-12V  0,3A / 3,6W
+5VSB  2,5A / 12,5W
Maximum Power  600W

Connectors

20+4 PIN ATX  1
8 PIN EPS(4+4)  1
8 PIN PCIe (6+2)  2
SATA  5
MOLEX/FLOPPY  3

Cable length (mm)

20+4 PIN ATX  650
8 PIN EPS(4+4)  650
8 PIN PCIe (6+2)  500/150
SATA  1x 500/150
1x 500/150/150
MOLEX/FLOPPY  500/150/150

Features

ATX12V Version  ATX 12V 2.3
Efficiency  80+Bronze
Dimension (DxWxH)  140 mm x 150 mm x 87 mm
PFC  Active PFC (0,9)
Fan  120mm silent fan
Security  AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty  24 Months
